Cloos welding robot: Automated welding




The CNC-controlled Cloos robot welding machine offers maximum flexibility in automated welding. Thanks to two rotating/swivel work-piece positioners arranged side by side, the machine can be loaded and unloaded simultaneously. By uniting the two work-piece positioners, structural components with a length of up to 7 m can be welded.

A high seam volume can be generated by using a tandem welding torch. A high welding speed is also possible by using the tandem welding torch.

An on-line follow-up of the welding seam is possible with a laser sensor attached to the welding torch. This guarantees a clean torch guidance at the work-piece and so ensures high seam quality. Furthermore, the welding torch can be positioned very precisely on the work-piece by the laser sensor.

Cloos welding robot performance data

Machine:
CLOOS QIROX C

Welding head:
One and two wire welding head

Procedure:
MIG-MAG

Working area:
Two stations: 3,200 x 1,600 x 1,600 mm.
One station: 7,000 x 1,600 x 1,600 mm
(larger dimensions on request)

Load:
max. 4,000 kg

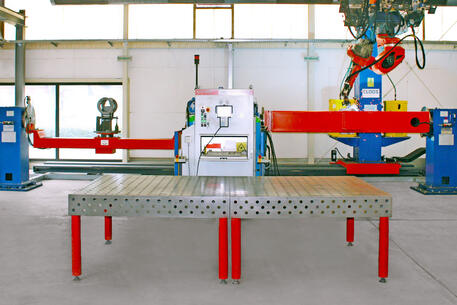

Cloos welding robot with 2 work-piece positioners

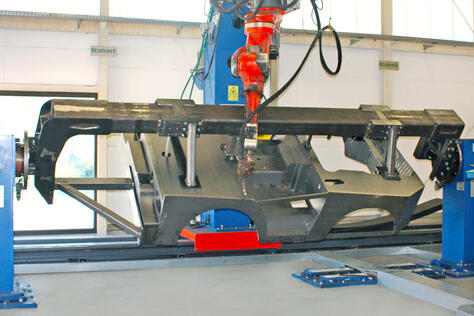

Cloos welding robot




Advantages of Cloos welding robot

  • High process safety and automation by CNC-control and laser sensor
  • Optimum seam course by on-line follow-up
  • Simultaneous loading and unloading
  • High welding speeds
  • Economical welding also of big components
  • High quality of welding seams








Do you have any questions? We will be happy to help you.
